TBC M1

REDEFINING PERFORMANCE FOR YOUR BUSINESS

The effective solution and fastest solution for container loading with loading and unloading belt conveyor by 'JAY'.
Nerwork Error

PRODUCT OVERVIEW

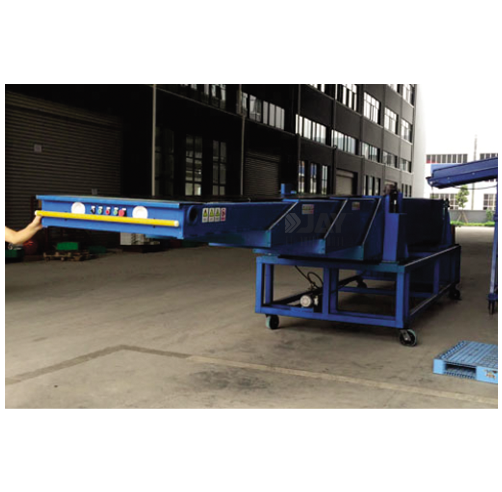

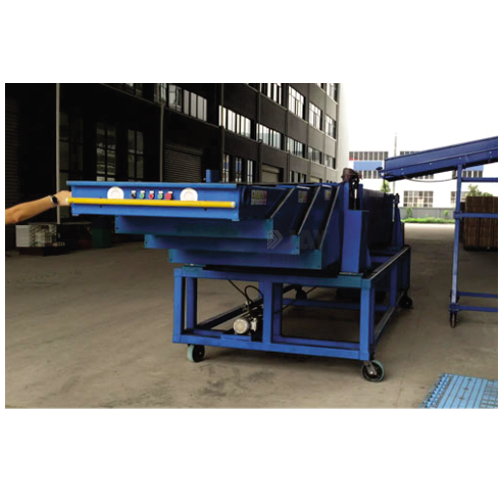

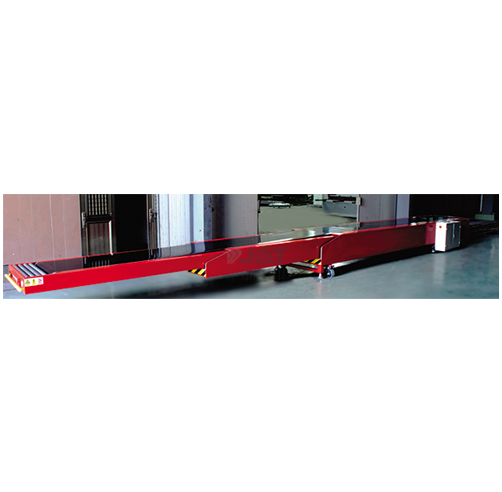

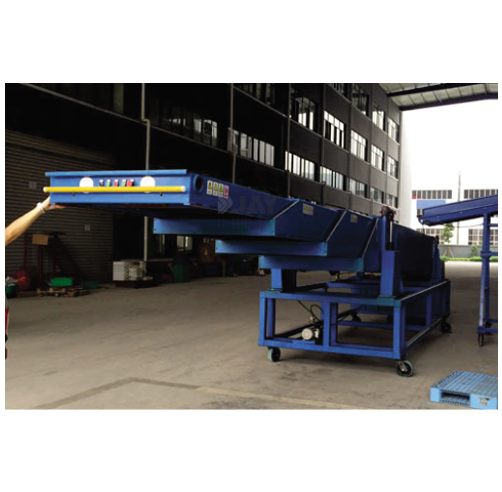

‘JAY’ Telescopic Belt Conveyor is one of the most popular loaders, which largely facilitates material handling work and increases work efficiency. It widely used for loading/unloading of container, trucks. It is extremely flexible and easily movable in to the position with braked swivel castors. Automatically stop by limit switch when lifting up & down. Electricals includes ON/OFF, emergency stop, Forward/Reverse, Up/down, Stop speed button.

SPECIFICATONS

Network Error
TBC M1

It is extremely flexible with easy height adjustment through hydraulic cylinder to level in to the required position.

Max Load 50 kg/m
Belt Width 600mm
Lift ht 1900mm
Variable Speed 10-20 m/min
Fixed length 5500mm
Extended length 6000 to 12500mm

FEATURES

PROVIDING EFFECTIVE AND REDEFINING PERFORMANCE FOR YOUR LOADING AND UNLOADING APPLICATION.
  • With High quality PVC belt
  • Conveyor height adjustable from 900mm to 1900mm
  • Variable belt speed
  • Easy to move around with heavy duty swivel castors
  • Automatically stop by limit switch when lifting up & down
  • Electricals include ON/OFF, Emergency stop, Fwd/Rev, Up/Down, Stop speed button
Network Error
×
